File Preview Replace Component

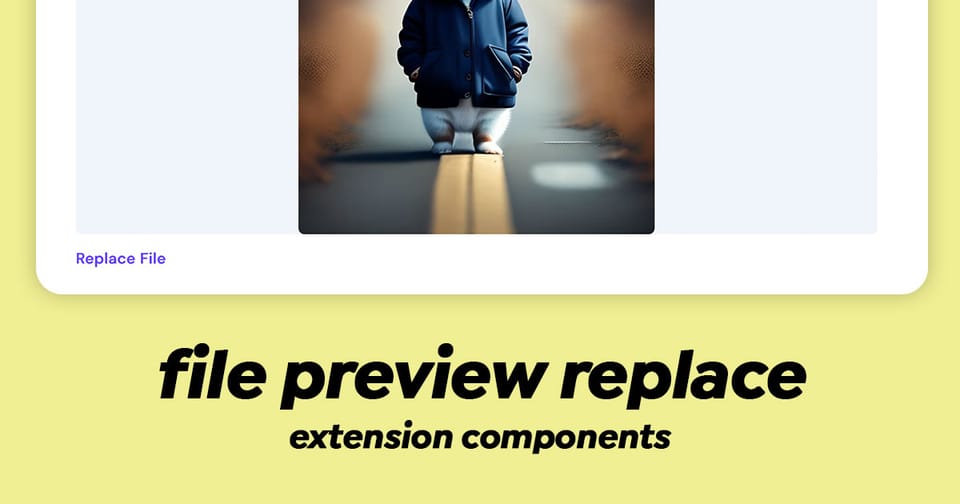

The FilePreviewReplace component in Directus provides a user-friendly interface for viewing and replacing files in Directus. It displays a preview of the current file along with a button that allows users to upload a replacement file through an interactive dialog.

This component is designed to be used in scenarios where you need to:

• Display a preview of an uploaded file
• Allow users to replace the file without navigating away from the current view
• Respect global MIME type restrictions set in Directus configuration
• Handle file uploads with proper validation based on server settings

Composition API

Props

Emits

• click - Emitted when the preview area is clicked
• replace - Emitted after the file has been successfully uploaded and replaced

Usage Example

Here's how to use the file-preview-replace component in your extension:

<script setup lang="ts">
import { ref } from 'vue';
import type { DirectusFile } from '@directus/sdk';

// Example file object
const currentFile = ref<DirectusFile>({
	id: 'file-123',
	storage: 'local',
	filename_disk: 'document.pdf',
	filename_download: 'My Document',
	title: 'Important Document',
	type: 'application/pdf',
	filesize: 2048576,
	created_on: new Date().toISOString(),
	// ... other file properties
});

const isEditable = ref(true);

function handleFileReplaced() {
	console.log('File has been replaced!');
	// Refresh file data, update UI, etc.
}

function handlePreviewClicked() {
	console.log('Preview was clicked');
}
</script>

<template>
	<div class="my-file-manager">
		<file-preview-replace
			:file="currentFile"
			:non-editable="!isEditable"
			@click="handlePreviewClicked"
			@replace="handleFileReplaced"
		/>
	</div>
</template>

<style scoped>
.my-file-manager {
	padding: 1rem;
}
</style>

Component Features

1. File Preview

The component displays a file preview using the nested FilePreview component, showing appropriate representations based on the file type (images, documents, etc.).

2. Replace Button

A "Replace File" button appears below the preview (translated via i18n). The button:

• Is disabled when nonEditable is true
• Opens a dialog modal when clicked
• Shows visual feedback for disabled state

3. Upload Dialog

When the replace button is clicked, a dialog opens containing:

• A title ("Replace File")
• A VUpload component configured to handle file replacement
• A "Done" button to close the dialog

4. MIME Type Validation

The component automatically:

• Retrieves global MIME type restrictions from the Directus server configuration
• Applies these restrictions to the file upload input
• Ensures only allowed file types can be selected for replacement

Styling

The component includes scoped styles for the replace button:

.replace-toggle {
	color: var(--theme--primary);        // Primary theme color
	cursor: pointer;
	font-weight: 600;
	margin-block-start: 0.6875rem;

	&[disabled] {
		cursor: not-allowed;
		color: var(--theme--foreground-subdued);  // Subdued color when disabled
	}
}

The styling uses CSS custom properties (--theme-*) for theming consistency with Directus's design system.

Best Practices

1. Always provide a valid file object - Ensure the file prop contains all required properties
2. Handle the replace event - Implement logic to refresh your UI or data after a file is replaced
3. Use nonEditable for read-only scenarios - Disable editing when appropriate for your use case
4. Respect MIME type restrictions - The component automatically enforces server-configured restrictions

Real-World Example: File Manager View

<script setup lang="ts">
import { ref, onMounted } from 'vue';
import type { DirectusFile } from '@directus/sdk';
import { useApi } from '@directus/extension-sdk';

const api = useApi();
const selectedFile = ref<DirectusFile | null>(null);
const isLoading = ref(false);

async function loadFile(fileId: string) {
	isLoading.value = true;
	try {
		const response = await api.get(`/files/${fileId}`);
		selectedFile.value = response.data.data;
	} catch (error) {
		console.error('Failed to load file:', error);
	} finally {
		isLoading.value = false;
	}
}

async function onFileReplaced() {
	// Refresh the file data after replacement
	if (selectedFile.value) {
		await loadFile(selectedFile.value.id);
	}
}

onMounted(() => {
	loadFile('initial-file-id');
});
</script>

<template>
	<div v-if="selectedFile" class="file-manager">
		<file-preview-replace
			:file="selectedFile"
			:non-editable="isLoading"
			@replace="onFileReplaced"
		/>
	</div>
</template>

Wrapping Up

Much like the FilePreview component, this shows the user the selected file but also provides a button to replace the file. The component handles the upload and replacement for you and simply emits a response when complete.
